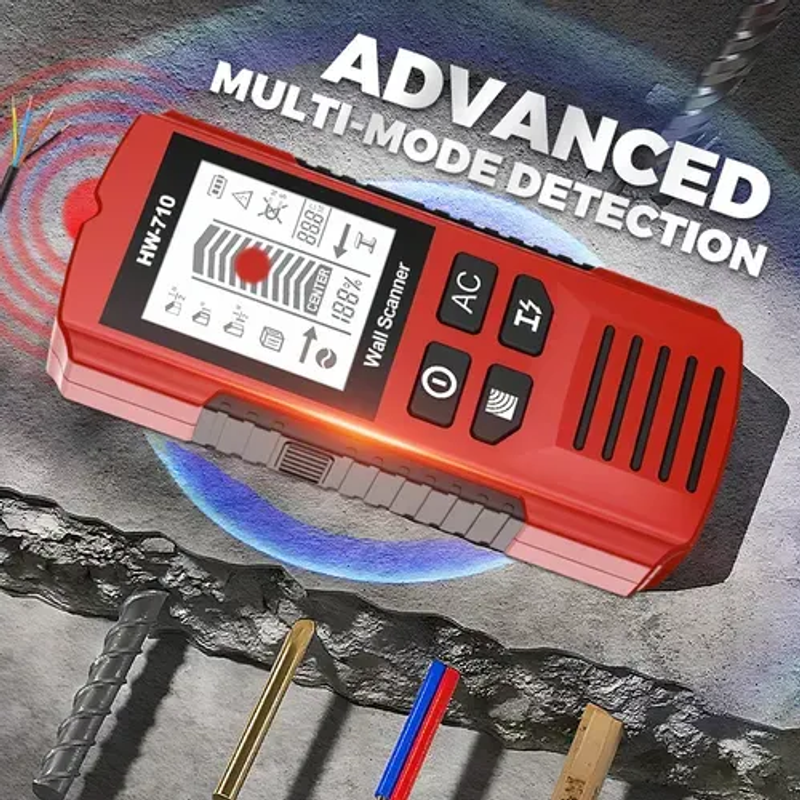

Multi-function handheld metal and wall detector 5 in 1 wall keel detector Metal Wooden keel AC voltage charged detection Wall scanner with automatic calibration Lightweight LCD screen Electric box detector 76 sales

PRODUCT DESCRIPTION:Quickly locate hidden wood, metal, pipes, and AC wires in your home's walls, floors, and ceilings. Works on flat surfaces, wallpaper, wood floors, acoustic ceilings, painted walls, and more. Protects you from hazards when installing TVs, shelves, cabinets, garage shelving, and more.

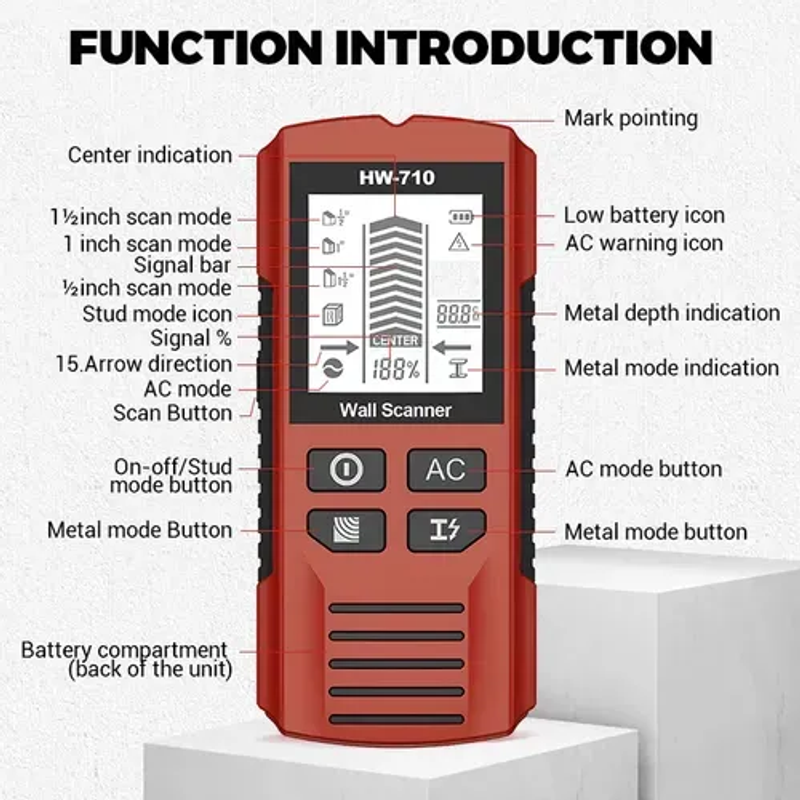

Detection mode:

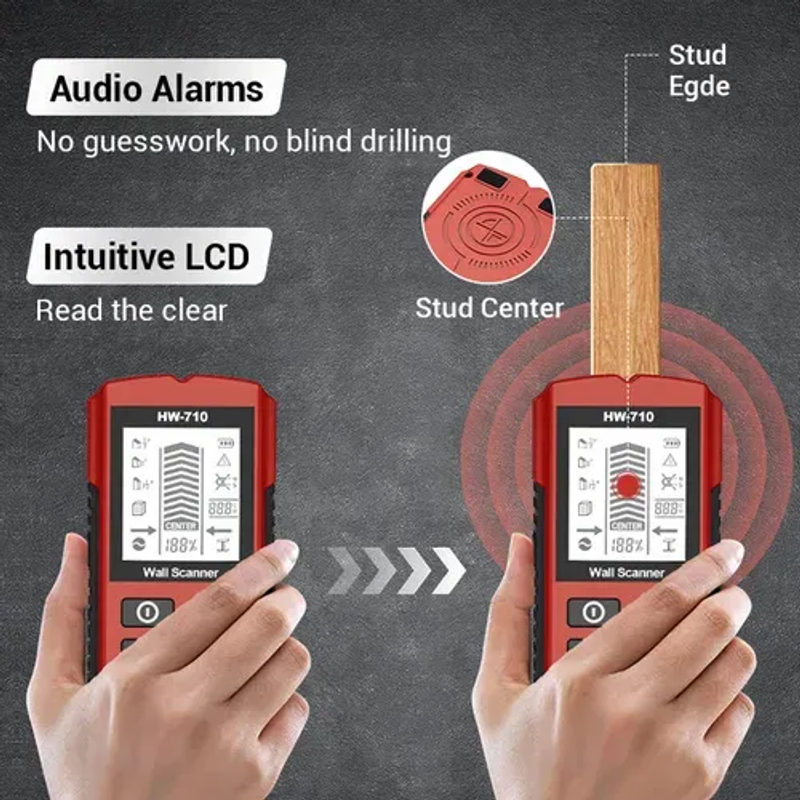

Stud Mode:

In pin mode, there are 3 scanning modes to choose the appropriate scanning surface thickness:
*The 1/2" scanning mode can detect 1/2 in. (13 mm) deep.
*The 1" scanning mode can detect 1 in. (25 mm) deep.
*The 1 1/2" scanning mode can detect 1 1/2 in. (38 mm) deep.
If you don't know the detection depth, it is recommended to use the 1/2" scanning mode first. If the 1/2" scanning mode fails to detect, use the 1" or 1 1/2" scanning mode.

Metal Mode:

Magnetic metal detection can be performed at depths of up to 80 mm (3.2 in) (15 mm diameter galvanized steel pipe).
Non-magnetic metals can be detected at depths of up to 60 mm (2.4 in) (13 mm diameter copper pipe).

AC Mode:

Detect unshielded live AC wires up to 51 mm deep.
